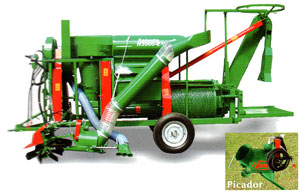

Low cost system for mechanical coffee harvest Selecta H3000



TECHNICAL DATA
Selecta H3000 MODELS
E ( bean lift )
B ( with bag holder)
Width for transportation (m)
1.50
1.50
Min. operational width (m)
2.30
2.30
Max. operational width (m)
2.70
2.70
Height (m)
1.80
1.80
Length (m)
3.50
3.90
Weight (kg)
1000
1050
Aspiration pipe (m)
2.50
2.50
Tractor PTO (CV)
540
540
Required power for PTO
55
55
FUNCTION
Harvester system, winnower, and bagger for both harvested coffee and coffee collected from the ground.

APPLICATION
- Coffee, macadamia nut.
TECHNICAL CHARACTERISTICS
-

Side pick-up attachment wih hydraulic-driven side displacement can be adjusted to suit the machine.
- Easy maintenance.
- Grain removal through venting and rotation screen (grain size composition).
- There is no need for applying ‘arruação' process (cleaning the ground under the coffee trees of rubbish and piling it in the middle of the row to help recovery of beans dropped during harvesting) .
- Allows to recollect up to 400 sacks of beans /work day (8 hours).
- Sack filling by a lift or pneumatic-driven process.
