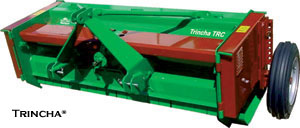

Soil management and pruning crushing TRC



TECHNICAL DATA
Working width (m) 2.20
Effective width (m) 2.50
Weight (kg) 1.500
Qty of blades: 72 (48 bend + 24 plain)
Cutting diameter (mm) 695
Quantity of toothed belts

06 (3 small + 3 big)
Rotor rpm at 540 rpm (PTO) 1550
Required power at tractor PTO(CV) 150
FUNCTION
- Crushing of sugar cane straw. Crushing of green manure ( crotalaria, dolicho, velvet bean, cajanus cajan, etc).

APPLICATION
- Sugar and alcohol factories. Sugar cane farmers. Service providers at sugar/alcohol industry.
TECHNICAL CHARACTERISTICS
-

Exclusively designed and built for sugar cane market.
- Better operational performance, smaller radius of gyration, and connection to hydraulic system 3rd point.
- Better crushing and homogeneity when spreading straw.
- Excellent performance in crushing organic matter for crop rotation.
- Makes cultivation/fertilizing of raw sugar cane easier.
- Reduces impact of straw volume left after harvesting and antecipates regrowth of ratoon.
