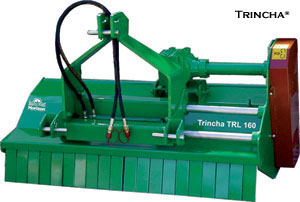

Soil management and pruning crushing TRL



TECHNICAL DATA
TRL MODELS
160
180
200
220
Working width (m)
1.60
1.80
2.00
2.20
Effective width (m)
1.75
1.95
2.15
2.35
Weight (kg)
545
570
600
620
Housing with opening
yes
yes
yes
yes
Transmission 540 rpm
yes
yes
yes
yes
Quantity of toothed belts
4
4
4
4
Quantity of hammers
16
18
20
22
Rotor rpm at 540 rpm
1.800
1.800
1.800
1.800
Required power at tractor PTO (CV)
45/50
45/50
45/50
45/50
FUNCTION
- Integrated cover crop management. Crushing of crop residue (pruning) up to Ø 6 cm.

APPLICATION
- Coffee, fruits in general, pasture, gardening, road and highway maintenance.
TECHNICAL CHARACTERISTICS
-

Rear cover with adjustable opening – heavy-duty housing.
- Double rotating counter blade.
- Braker roll with forge hammers 1.3 kg each.
- Rear backing roll for adjusting cutting height and standardizing crushed material.
- Manual or hydraulic-drive side displacement.
- Crushing of branches up tp 6cm dia. through pendular-action hammers.
