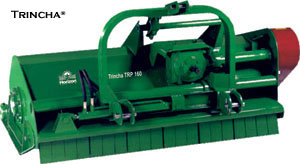

Soil management and pruning crushing TRP



TECHNICAL DATA
TRP MODELS
120
160
Working width (m)
1.20
1.60
Effective width (m)
1.37
1.77
Weight (kg)
500
690
Housing with opening
yes
yes
Transmission 540 rpm
yes
yes
Quantity of hammers
7
10
Rotor rpm at 540 rpm (PTO)
1.600
1.600
Required power at tractor PTO (CV)
55/100
55/100
FUNCTION
- Integrated cover crop management. Crushing of crop residue (pruning) up to Ø 15 cm.

APPLICATION
- Coffee, fruits in general, pasture, gardening, road and highway maintenance.
TECHNICAL CHARACTERISTICS
-

Fixed or movable coupling head.
- Crushing through pendular-action hammers.
- Counter blade.
- braker roll with forge hammers 2,5 kg each.
- rear backing roll for adjusting cutting height and standardizing crushed material.
- hydraulic-driven side displacement.
- overdrive gearbox for extremelly heavy duties.
- crushing of pruning residues up to Ø 15 cm dia.
