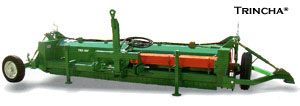

Soil management and pruning crushing TRS



TECHNICAL DATA
TRS MODELS 360
Working width (m) 3.60
Weight (kg) 1.800
Quantity of blades 96 bend + 48 plain
Rotor shaft (diam/mm) 152
Rotor shaft rotation (mm) 1600
Required power at tractor PTO (CV) 100/120
FUNCTION
- Crushing of corn and cotton crop residue. Integrated cover crop management.
Crushing of organic matter to be incorporated to the soil.

APPLICATION
- Cotton, corn, crotalaria and similar.
TECHNICAL CHARACTERISTICS
-

Blades with a bigger wearing area, totally thermal treatment with double cut (allows reverse position after first wearing).

- Automatic drive belt stretching (spring device).
- Less total weight, then low drive power demand.
- Hydraulic system to adjust working height, longitudinal transportation system.
- 3-point working manners and drift and turn is free.
- One-axle equipment.
- Robust and low maintenance.
