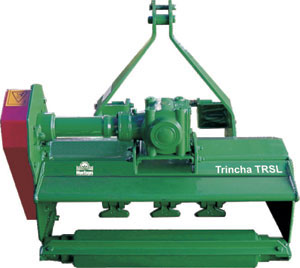

Soil management and pruning crushing TRSL



TECHNICAL DATA
TRSL MODEL 90
Working width (m) 0.90
Effective width (m) 0.97
Length (m) 0.95
Height (m) 0.75
Weight (kg) 280
Quantity of hammers 9
Working rotation (PTO) 540/1000RPM
Required power (HP) > 15
FUNCTION
- Integrated cover crop management. Crushing of crop residue (pruning) up to Ø 6 cm.

APPLICATION
- Coffee, fruits in general, gardening, road and highway maintenance.
TECHNICAL CHARACTERISTICS
-

Gearbox adjustable for 540 and 1000 rpm at PTO.
- Suitable for all tractors, including microtractor.
- Low power demand.
- Double counter blade.
- Braker roll with forge hammers 1.3 kg each.
- Cutting width: 90 cm.
- Rear backing roll for adjusting cutting height and standardizing crushed material.
- Manual side displacement.
- Crushing of branches up to 6 cm dia. using pendular-action hammers.
