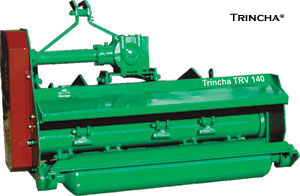

Soil management and pruning crushing TRV



TECHNICAL DATA
TRV MODELS
100
120
Working width (m)
1.00
1.20
Effective width (m)
1.20
1.40
Weight (kg)
450
500
Housing with opening
sim
sim
Transmission 540 rpm
sim
sim
Quantity of toothed belts
4
4
Quantity of hammers
10
12
Rotor rpm at 540 rpm
1.800
1.800
Required power at tractor
PTO (CV)
30/85
30/85
FUNCTION
- Integrated cover crop management. Crushing of crop residue (pruning) up to Ø 6 cm.

APPLICATION
- Coffee, fruits in general, pasture, gardening, road and highway maintenance.
TECHNICAL CHARACTERISTICS
-

Heavy duty gearbox

- Housing which allows opening
- Double counter blade
- Braker roll with forge hammers 1.3 kg each
- Rear backing roll for adjusting cutting height and standardizing crushed material
- Manual side displacement
- Crushing of branches up to 6 cm dia. using pendular-action hammers
